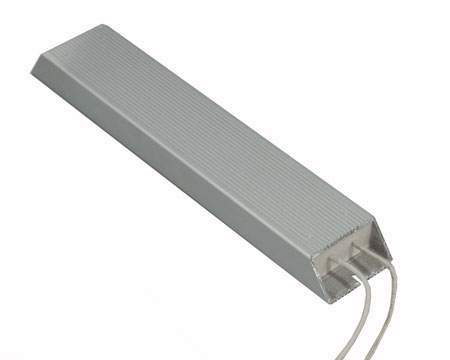

Product name: RXLG-H-F Series Wire wound resistors in aluminum casing
Type: RXLG-H-F
Product introduction: RXLG series wire wound resistor in aluminum casing is made by aluminum casing and has a handsome appearance. Its ability of resistance to vibration, climate and security is precede to those resistors with ceramic framework. This resistor is power wire wound resistor which is made by a kind of organic silicon rosin and silicon powder as basic material encapsulation. It is easy to fix tightly and add to radiator.
Purpose: Wire wound resistors in aluminum casing is used in electric loop of power supply, transducer, servo system and so on widely. It can also be used in wicked industry control environment. It is a ideal product of electric.
Technology parameter of type RXLG aluminous crust resistor Electric and mechanical capability:
Serial number
Item
Capability require
Test method
1
Resistance and resistance variance
R≥1Ω ±5% R<1Ω ±10%
Accordance with JIS-C-5202 5.1
2
Resistor temperature Coefficient
R>20Ω,±260 ppm/℃ R≤20Ω,±400 ppm/℃
To run within temperature range –25~200℃, factor shall be in accordance with JIS-C-5202 5.2
3
Rating load
Superficial temperature≤375℃
Correctly mounted on 300×300×3mm plate aluminium ,accordance with JIS-C-5202 5.4
4
Short term overload
No abnormality ΔR≤±（2%R+0.05Ω）
Application of 10 times higher than rating voltage for 5 seconds under the same invironment, accordance with JIS-C-5202 5.5
5
Insulation resistance
No abnormality R≥100MΩ
Insulation resistance shall be 100 MΩ or more between terminal and case when measured with DC 500V insulation resistance tester, accordance with JIS-C-5202 5.6
6
Withstand voltage
No abnormality no destroying ΔR≤±（ 0.1%R+0.05Ω）
No abnormality shall be found when AC 2500V applied between terminal and case for 1 min, accordance wirh JIS-C-5202 5.7
7
Terminal strength
No abnormal or Loosing
A static load of 100N in the direction of terminal for 30 seconds, accordance to JIS-C-5202 6.1.2(1)
8
Vibration proof
No abnormal ΔR≤±（0.1%R+0.05Ω）
No mechanical damage shall be observed where vibration applied in a cycle of 10~55HZ 1.5mm wide in the three directions for 1 minute, keeping 2 hours in each direction. Accordance with JIS-C-5202 6.3
Technology parameter of type RXLG aluminous crust resistor
Endure capability:
Heat tolerance
No colour changed and abnormality except terminal, sign clear
Where the device is heated to 350±5℃ with no load for 120±5 minutes , accordance with JIS-C-5202 7.2
Thermal shock
Apply rating power for 30 minutes,on reaching thermal stability ,within 8-12 s expose to -40±2℃ for 15+5 minutes, then constant temperature, 2 hours. accordance with JIS-C-5202 7.3
Moisture resistance life
No damage Sign clear ΔR≤±（3%R+0.05Ω） Insulation resistance R≥25MΩ
DC voltage of 100V at 40±2℃ at relative humidity 90-95% shall be applied for 1 hour, then cycled off for less than 0.5 hours ，for 500+24 hours, accordance with JIS-C-5202 7.5
Load life
No damage Sign clear ΔR≤±（5%R+0.05Ω）
Correctly mounted on 300×300×3mm plate aluminium, rating DC voltage shall be applied at 20±7℃, 90 minutes on 30 minutes off, then cycled for 500+24 hours, accordance with JIS-C-5202 7.10
Type
RXLG-H-F 60W
RXLG-H-F 80W
RXLG-H-F 100W
RXLG-H-F 150W
RXLG-H-F 200W
RXLG-H-F 300W
Resistance range
Ω
R50- 4K
R50- 4K3
R75- 5K1
R75- 6K8
1R0- 7K5
1R0- 8K2
Tolerance of resistance
%
Temperature coefficient
ppm/℃
MΩ
R≥100
Weight
kg
-

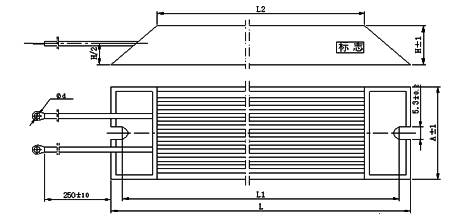

Dimension
L
mm
115
140
165
215
L1
100
125
150
200
L2
75
175
A
40
60
H
20
30
d
Power rating
V
Protection lever
IP54
Climatic category (IEC 68-1)
40/155/21
Temperature change
℃
-40——200
Ability to tractive power of terminals
N
Connections
Lead fetched out
