3WL1116-3AA36-1AA2 3WL1225-3AA36-1AA2 3WL1225-3AA36-1AA2

2016-10-29 12:08      Click£ºtimes
Inquiry Photo Description Model Technical parameters Certification Remark

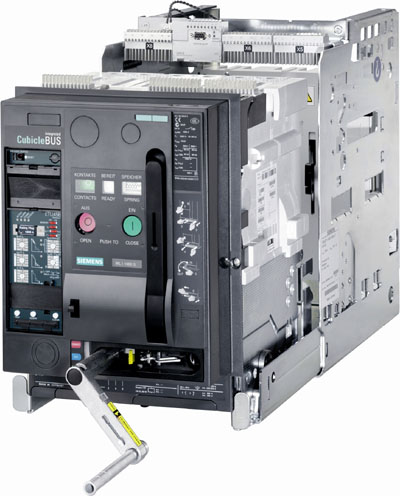

3WL Draw-out 3P ACB without Overcurrent Release 3WL1116-3AA36-1AA2 Rated Current 1600A£¬Max. Rated Operating Voltage 690VAC

Breaking Capacity (Icu; 440V) 630A-1600A = 65kA,800A-3200A = 80kA		 IEC 947-2, DIN VDE 0660 Other models also available, please contact us for details.
3WL Draw-out 3P ACB without Overcurrent Release 3WL1220-3AA36-1AA2 Rated Current 2000A£¬Max. Rated Operating Voltage 690VAC

Breaking Capacity (Icu; 440V) 630A-1600A = 65kA,800A-3200A = 80kA		 IEC 947-2, DIN VDE 0660 Other models also available, please contact us for details.
3WL Draw-out 3P ACB without Overcurrent Release 3WL1225-3AA36-1AA2 Rated Current 2500A£¬Max. Rated Operating Voltage 690VAC

Breaking Capacity (Icu; 440V) 630A-1600A = 65kA,800A-3200A = 80kA		 IEC 947-2, DIN VDE 0660 Other models also available, please contact us for details.
3WL Draw-out 3P ACB without Overcurrent Release 3WL1232-3AA36-1AA2 Rated Current 3200A£¬Max. Rated Operating Voltage 690VAC

Breaking Capacity (Icu; 440V) 630A-1600A = 65kA,800A-3200A = 80kA		 IEC 947-2, DIN VDE 0660 Other models also available, please contact us for details.
3WL Draw-out 4P ACB £¬without Overcurrent Release 3WL1106-3AA46-1AA2 Rated Current 630A£¬Max. Rated Operating Voltage 690VAC

Breaking Capacity (Icu; 440V) 630A-1600A = 65kA,800A-3200A = 80kA		 IEC 947-2, DIN VDE 0660 Other models also available, please contact us for details.
3WL Draw-out 4P ACB £¬without Overcurrent Release 3WL1108-3AA46-1AA2 Rated Current 800A£¬Max. Rated Operating Voltage 690VAC

Breaking Capacity (Icu; 440V) 630A-1600A = 65kA,800A-3200A = 80kA		 IEC 947-2, DIN VDE 0660 Other models also available, please contact us for details.
3WL Draw-out 4P ACB £¬without Overcurrent Release 3WL1110-3AA46-1AA2 Rated Current 1000A£¬Max. Rated Operating Voltage 690VAC

Breaking Capacity (Icu; 440V) 630A-1600A = 65kA,800A-3200A = 80kA
 		 IEC 947-2, DIN VDE 0660 Other models also available, please contact us for details.
3WL Draw-out 4P ACB £¬without Overcurrent Release 3WL1112-3AA46-1AA2 Rated Current 1250A£¬Max. Rated Operating Voltage 690VAC

Breaking Capacity (Icu; 440V) 630A-1600A = 65kA,800A-3200A = 80kA		 IEC 947-2, DIN VDE 0660 Other models also available, please contact us for details.
3WL Draw-out 4P ACB £¬without Overcurrent Release 3WL1116-3AA46-1AA2 Rated Current 1600A£¬Max. Rated Operating Voltage 690VAC

Breaking Capacity (Icu; 440V) 630A-1600A = 65kA,800A-3200A = 80kA		 IEC 947-2, DIN VDE 0660 Other models also available, please contact us for details.
3WL Draw-out 4P ACB £¬without Overcurrent Release 3WL1220-3AA46-1AA2 Rated Current 2000A£¬Max. Rated Operating Voltage 690VAC

Breaking Capacity (Icu; 440V) 630A-1600A = 65kA,800A-3200A = 80kA		 IEC 947-2, DIN VDE 0660 Other models also available, please contact us for details.
3WL Draw-out 4P ACB £¬without Overcurrent Release 3WL1225-3AA46-1AA2 Rated Current 2500A£¬Max. Rated Operating Voltage 690VAC

Breaking Capacity (Icu; 440V) 630A-1600A = 65kA,800A-3200A = 80kA		 IEC 947-2, DIN VDE 0660 Other models also available, please contact us for details.
3WL Draw-out 4P ACB £¬without Overcurrent Release 3WL1232-3AA46-1AA2 Rated Current 3200A£¬Max. Rated Operating Voltage 690VAC

Breaking Capacity (Icu; 440V) 630A-1600A = 65kA,800A-3200A = 80kA		 IEC 947-2, DIN VDE 0660 Other models also available, please contact us for details.
3WL Draw-out 3P ACB with Overcurrent Release 3WL1106-3CB36-1AA2 Rated Current 630A£¬Max. Rated Operating Voltage 690VAC

Breaking Capacity (Icu; 440V) 630A-1600A = 65kA,800A-3200A = 80kA, with “ETU27B” Overcurrent Release LSING
 		 IEC 947-2, DIN VDE 0660 Other models also available, please contact us for details.
3WL Draw-out 3P ACB with Overcurrent Release 3WL1108-3CB36-1AA2 Rated Current 1000A£¬Max. Rated Operating Voltage 690VAC

Breaking Capacity (Icu; 440V) 630A-1600A = 65kA,800A-3200A = 80kA, with “ETU27B” Overcurrent Release LSING		 IEC 947-2, DIN VDE 0660 Other models also available, please contact us for details.
3WL Draw-out 3P ACB with Overcurrent Release 3WL1110-3CB36-1AA2 Rated Current 1000A£¬Max. Rated Operating Voltage 690VAC

Breaking Capacity (Icu; 440V) 630A-1600A = 65kA,800A-3200A = 80kA, with “ETU27B” Overcurrent Release LSING		 IEC 947-2, DIN VDE 0660 Other models also available, please contact us for details.
3WL Draw-out 3P ACB with Overcurrent Release 3WL1112-3CB36-1AA2 Rated Current 1250A£¬Max. Rated Operating Voltage 690VAC

Breaking Capacity (Icu; 440V) 630A-1600A = 65kA,800A-3200A = 80kA, with “ETU27B” Overcurrent Release LSING		 IEC 947-2, DIN VDE 0660 Other models also available, please contact us for details.
3WL Draw-out 3P ACB with Overcurrent Release 3WL1116-3CB36-1AA2 Rated Current 1600A£¬Max. Rated Operating Voltage 690VAC

Breaking Capacity (Icu; 440V) 630A-1600A = 65kA,800A-3200A = 80kA, with “ETU27B” Overcurrent Release LSING
 		 IEC 947-2, DIN VDE 0660 Other models also available, please contact us for details.
3WL Draw-out 3P ACB with Overcurrent Release 3WL1220-3CB36-1AA2 Rated Current 2000A£¬Max. Rated Operating Voltage 690VAC

Breaking Capacity (Icu; 440V) 630A-1600A = 65kA,800A-3200A = 80kA, with “ETU27B” Overcurrent Release LSING		 IEC 947-2, DIN VDE 0660 Other models also available, please contact us for details.
3WL Draw-out 3P ACB with Overcurrent Release 3WL1225-3CB36-1AA2 Rated Current 2500A£¬Max. Rated Operating Voltage 690VAC

Breaking Capacity (Icu; 440V) 630A-1600A = 65kA,800A-3200A = 80kA, with “ETU27B” Overcurrent Release LSING		 IEC 947-2, DIN VDE 0660 Other models also available, please contact us for details.
3WL Draw-out 3P ACB with Overcurrent Release 3WL1232-3CB36-1AA2 Rated Current 3200A£¬Max. Rated Operating Voltage 690VAC

Breaking Capacity (Icu; 440V) 630A-1600A = 65kA,800A-3200A = 80kA, with “ETU27B” Overcurrent Release LSING		 IEC 947-2, DIN VDE 0660 Other models also available, please contact us for details.
